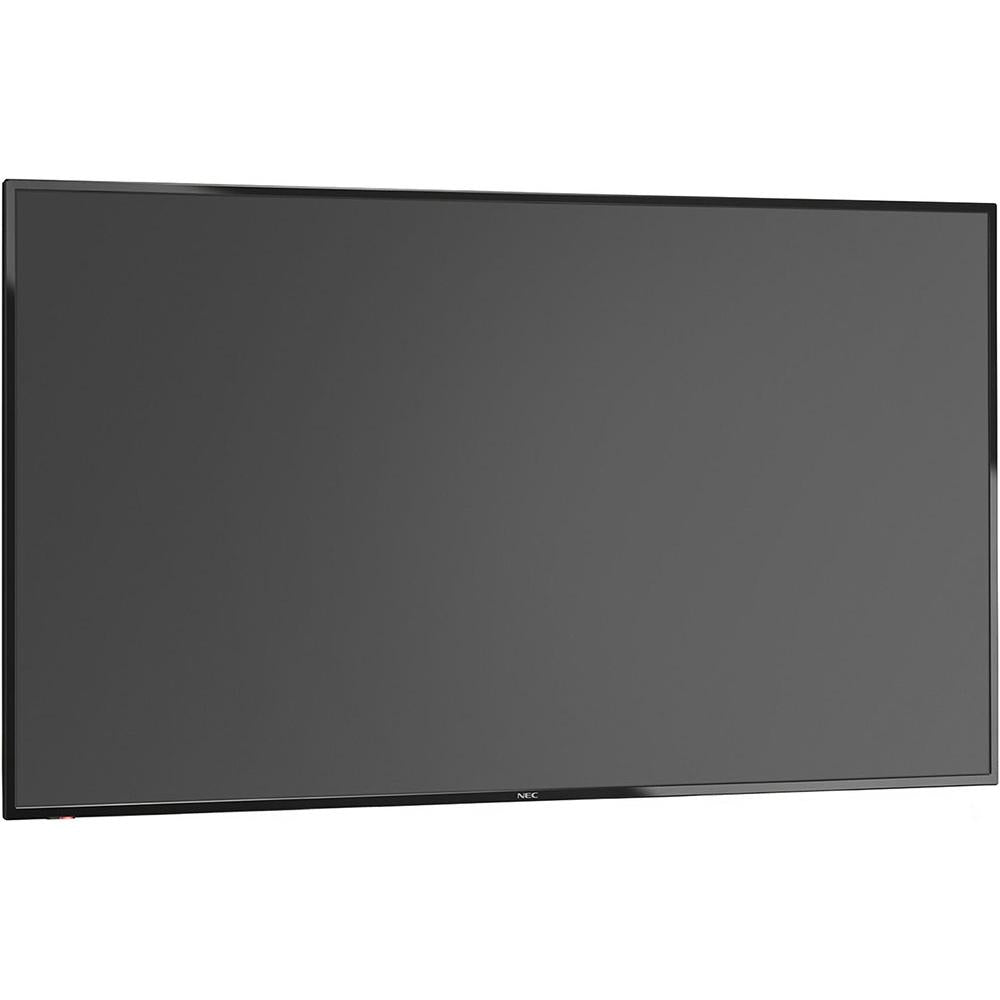

The 50″ NEC E506, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model’s LED backlighting allows for reduced power consumption, a thinner depth, a smaller bezel and lighter weight. Full HD resolution delivers stunning image quality for a variety of content, and the E506’s integrated tuner and speakers allow users to enjoy high-definition broadcast capabilities. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.

1080p native resolution (1920×1080)
High resolution provides detailed display of text, graphics and images. HD video is displayed in 16:9 wide aspect ratio.

Built-In NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
Allows for high-definition broadcast capabilities.

USB Viewer
Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.

Product Features:

• Integrated multimedia USB player makes digital signage simple
• LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
• Thinner bezel improves display’s aesthetics
• 24-Hour On/Off timer maintains power schedules
• Full HD Resolution allows for excellent image quality
• Video signal wake-up function allows for plug and play fucntionality
• Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
• Built-in, low-profile 10W speakers enhance the experience with superior sound

Product Specifications:

Display

• Panel Technology: VA
• Viewable Image Size: 50″
• Native Resolution: 1920 x 1080
• Pixel Pitch: 0.57mm
• Backlight Type: LED Direct-lit
• Brightness (typical): 350cd/m2
• Contrast Ratio (typical): 3000:1
• Viewing Angle: 176 degrees Vert., 176 degrees Hor. (88U/88D/88L/88R) at CR greater than 10
• Response Time (Gray to Gray): 8ms
• Refresh Rate: 60Hz
• Aspect Ratio: 16:9
• Active Screen Area: 43.1 x 24.3 in. / 1095.8 x 616.4mm
• Orientation: Landscape
• Displayable Colors: More than 16.7 million

Synchronization Range

• Horizontal (Analog/Digital): 31-83 kHz
• Vertical: 56-75 Hz

Input Signal

• Video: Analog RGB 0.7 Vp-p/75 Ohms
• Separate sync: TTL Level (Positive/Negative)
• Composite sync: TTL Level (Positive/Negative)
• Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)

Connectivity

• PC Signal Compatibility: Yes
• Macintosh Compatibility: Yes

Input Terminals

• Digital: HDMI (3)
• Analog: VGA 15-pin D-sub, Component, Composite (shared with Component)
• Audio: HDMI Audio, Stereo Mini-Jack
• External Control: RS-232C

Output Terminals

• Audio: SPDIF

Power Consumption (typical)

• On: 109W
• ECO Mode Standby: less than 0.5W

Physical Specifications

• Bezel Width (Left/Right, Top/Bottom): 0.47 in./0.47 in., 0.47 in./0.57 in.; 11.9mm/11.9mm, 11.9mm/14.4mm

Dimensions (WxHxD)

• Net (without stand): 44.2 x 25.5 x 3.0 in. / 1123.6 x 646.7 x 77mm
• Shipping: 47.2 x 28.9 x 5.2 in. / 1200 x 734 x 133mm

Weight

• Net (without stand): 28.4 lbs. / 17.5 kg
• Shipping: 37.5 lbs. / 17.0 kg

VESA Hole Configuration Specifications

• 4 x M6 x 15mm (400 x 200)

Environmental Conditions

• Operating Temperature: 32-104 degrees F / 0-40 degrees C
• Operating Humidity: 10-80 percent
• Operating Altitude: 6562 ft. / 2000m
• Storage Temperature: 32-104 degrees F / 0-40 degrees C
• Storage Humidity: 5-85 percent
• Storage Altitude: 40,000 ft. / 12,192m

Limited Warranty (parts and labor, including backlight)

• 3 years

Additional Features

• Built-in NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
• Variable picture modes (Dynamic Standard/Energy Savings/Theater/Custom)
• Advanced Video/Audio Settings
• Sleep Timer
• Built-In closed captioning
• Parental Control (V-Chip Function)
• Video Signal Wake-Up Function
• USB Port
